Snom Meeting Point – Manual Configuration

You are here: Help Customer Equipment Snom Meeting Point – Manual Configuration


Follow this guide if you have a Snom MeetingPoint IP Phone.

To use this guide you will need the following:
  • Extension Number or User ID
  • Password
  • SIP Server address

Initial Settings

The following settings are performed on the SNOM Meetingpoint and only need to be done if the meetingpoint has been factory reset or this is a new device.

Language

  1. Use the arrow keys to select the language,
  2. Once the language is selected push the green talk button to select

Timezone

  1. Push the More button just below the screen
  2. Use the arrow keys to find your timezone in the list
  3. Push the green talk button to select the timezone

Dialtone

  1. Use the arrow keys to select the Australia
  2. Push the green talk button to select

Obtain IP Address

In order to do the next part of the configuration you need to obtain the IP addresss, follow these steps to do so:

  1. Push the key marked Menu
  2. Use the arrow keys to navigate to Maintenance and push the green talk key
  3. Use the arrow keys to navigate to System Info and push the green talk key
  4. Note the field labeled IP Adr: and use the value in the next step

Browsing to administration panel

Now that you know your IP Adr value open your web browser and enter http://IP Adr and push enter. For instance if your IP Adr was 192.168.0.10 enter http://192.168.0.10.

If you have been successful you should see a login screen. The default username is admin and the default password is admin

Identity (1)

The settings below are all configured under one of the Identity links on the left.

Login Tab:

The next step is to configure the identity you want you account to use, in most cases this will be Identity 1. Select Identity 1 from the list.

On the Login tab set the following:

  • Display Name – Your name e.g. Meeting Room 1
  • Account – The extension number you wish to use e.g. 1001
  • Password – The password for the extension
  • Registrar – Your SIP Server address
  • Outbound Proxy – Same as Registrar your SIP Server address
  • Authentication Username – Same as account the Extension number you wish to use
  • Click Save

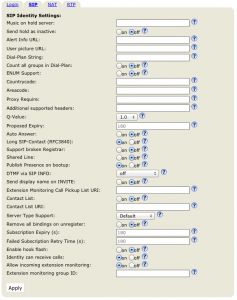

SIP Tab:

Next click the SIP tab and set the following:

  • Proposed Expiry – 180
  • Subscription Expiry (s) – 180
  • Click Save

NAT Tab:

Next click the NAT tab and set the following:

  • Keepalive interval (seconds) – 30

RTP Tab:

Next click the RTP tab and set the following:

  • Codec 1: G.729A
  • Codec 2: G711a
  • Codec 3: G.711u
  • Codec 4: G722
  • Packet Size: 20 mx
  • RTP Encryption – Off
  • Click Save

Click Advanced from the left

Select the Audio tab and set

  • Casing Mic Volume (1 – 8): 3
  • Equalizer: Bright

Setting Passwords

  1. Click Advanced
  2. Click QoS/Security

Security:

  1. Set Administrator Password: Set the password to something secure
  2. Set Administrator Password (Confirmation): Confirm the password you entered above

HTTP Server:

  1. Set User to admin or something else suitable
  2. Set Password to a secure administrators password.  You will need this to login and change configuration later

Click Save to apply the changes

Reboot

Now that the settings are complete there will be a button that has appears saying “Apply setting changes?” Reboot push the Reboot button and click Yes to confirm the reboot.

Assign Function Key

After your account is registered you need to assign a key for the account, If you wish you can assign multiple line keys to one account which can make it easier when you wish to put someone on hold and make another call.

Click Function keys from the menu on the left, select the button you want to assign to the first function key, in this case P1

  • Click the First dropdown and select your account
  • Click the second dropdown and select Line

Your button should now look similar to this:

Now click Save and you should be able to to receive an make calls.
