FreePBX (Asterisk 12 and above PJSIP)

You are here: Help PBX Servers FreePBX (Asterisk 12 and above PJSIP)


If you are running a later version of FreePBX that includes Asterisk 12 and above with PJSIP you should follow this method.

If you get stuck and need assistance please contact our support department.

  • Login to your FreePBX control panel via the IP Address for your server, for example if you server uses the IP 192.168.1.50 enter http://192.168.1.50 in your web browser
  • Select Connectivity then Trunks
  • Select Add Trunk then select Add SIP (chan_pjsip) Trunk

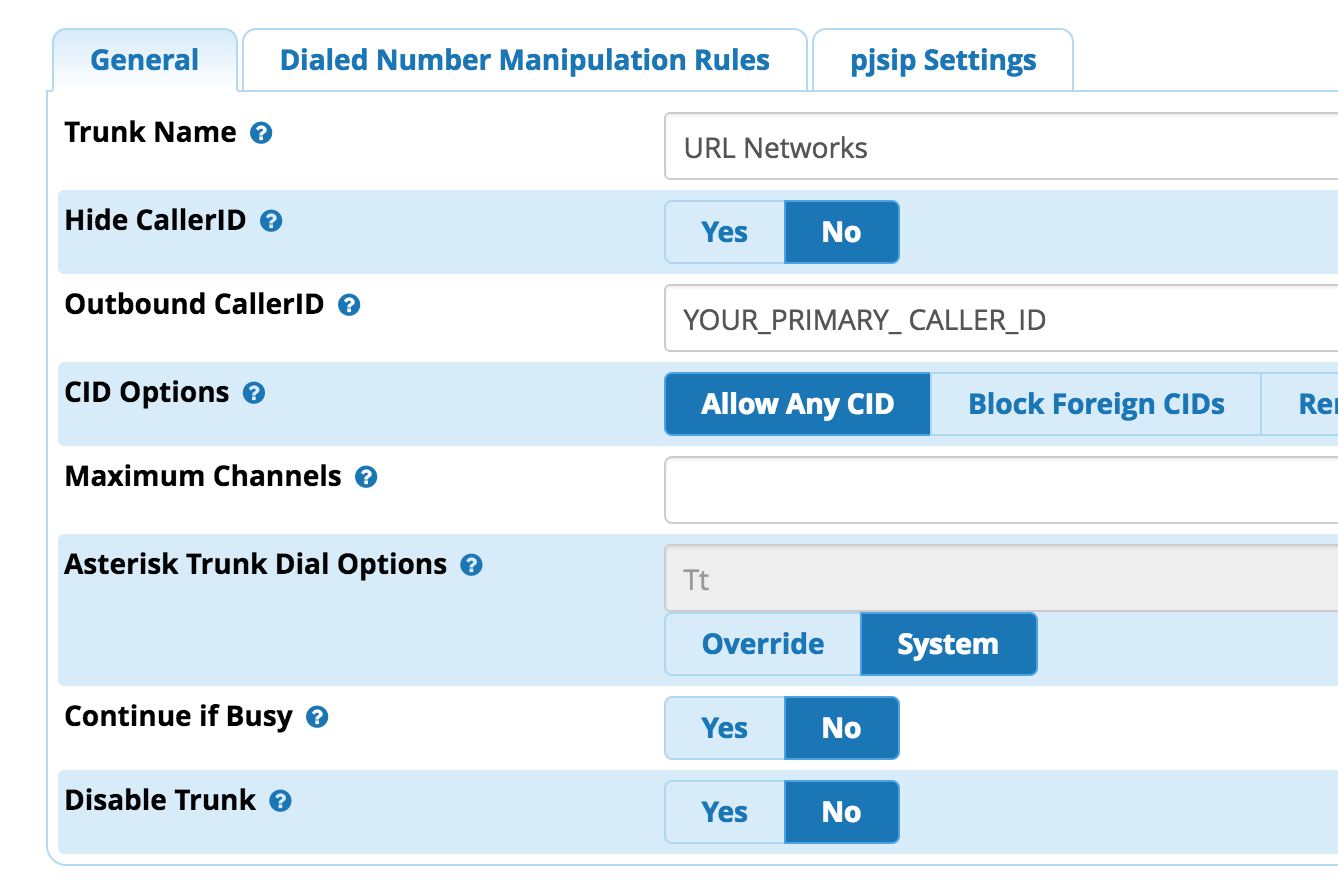

  • On the next screen enter the following:
    • Trunk Name: URL Networks
    • Outbound Caller ID: Set this to be your primary phone number (include the full country + area code. e.g. 61312341234)
  • Next select pjsip Settings and enter the following
    • Username: Your SIP username, this will be in your account notification email or you can view it via our Dashboard.
    • Password: The SIP password for the account, this will be in your account notification email or you can view it via our Dashboard.
    • Authentication: Outbound
    • Registration: Send
    • SIP Server: Your SIP server address, this will be in your account notification email or you can view it via our Dashboard.
  • Select the Advanced tab and enter the following:
    • From Domain: The SIP Server used in the previous section
    • From Username: Your SIP Server Username
