Configuring QoS on a Cisco srp527w

  • Browse to your routers IP address and login
  • Select Network Setup and QoS
  • Select QoS Bandwidth Control
  • Set status to: enabled
  • Upstream Bandwidth: You maximum upload speed (Visit http://www.speedtest.net to work out upload speed)
  • Click Submit
  • Select QoS Policy and click “Add Entry”
  • Set the following Values
  • Category: IP Address
  • Enter a Name: URLVoIP
  • Destination IP Address: 180.235.111.64
  • Destination Netmask: 255.255.255.224
  • LAN: All
  • Priority: High
  • Marking: Disabled

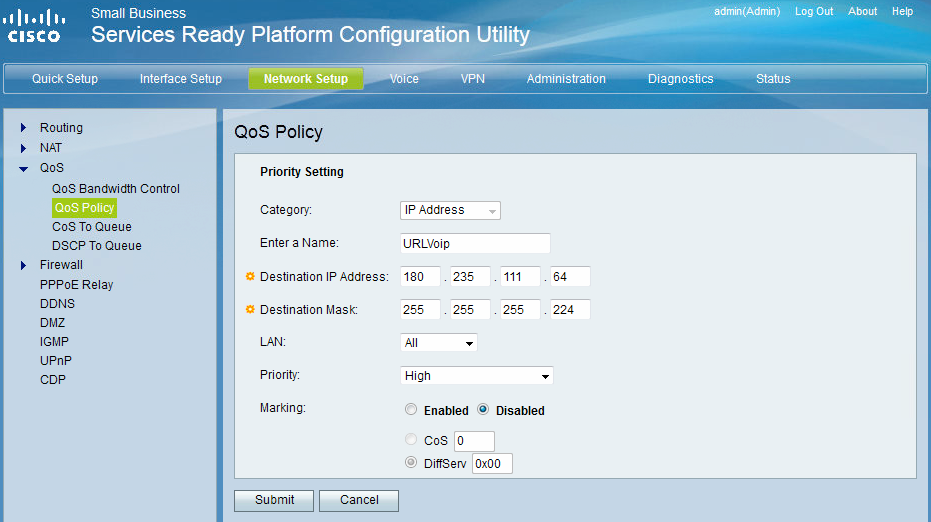

  • Your settings should look like this:
  • Click Submit to save the changes
Your QoS should now be applied and should notice an improvement with your call quality.
